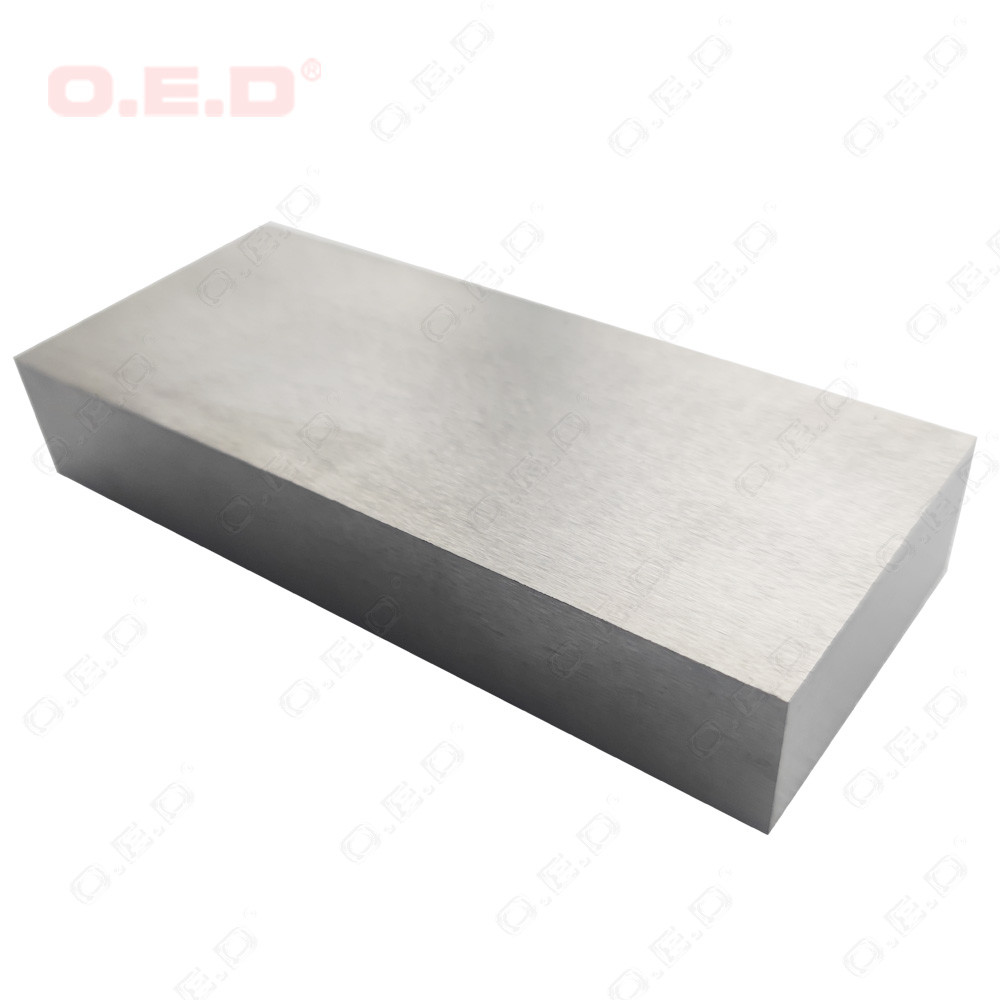

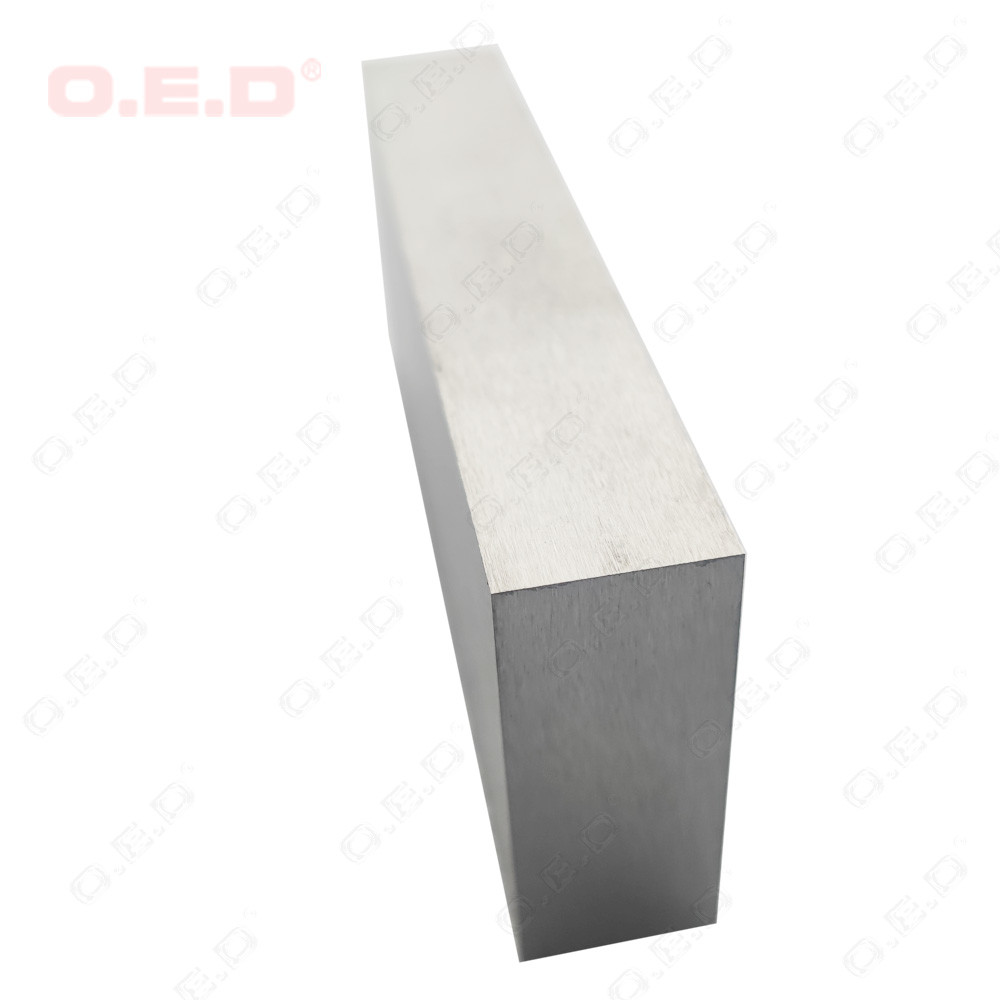

    50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90

    Ask Lasest Price
    Brand Name : OED/OEM is available
    Model Number : Carbide block
    Certification : ISO9001:2015
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000kgs per month
    Delivery Time : Standard products in one week, special tools in 45 days
    • Product Details
    • Company Profile

    50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90

    50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90


    Tungsten Carbide Preforms for Tooling and Wear Parts. Our extensive experience and the full range of cobalt grades gives us the capability to produce a wide variety of high-quality tungsten carbide blocks/plates


    Ground carbide block for making molds

    Length 185mm

    Width 45mm
    Thickness 50mm


    Tolerance for all dimensions +0.2mm


    Grade recommended:

    Wear part gradesGradeISO GradeCoDensityHardnessT.R.S.Grain size
    OK05UFK056.0014.9093.203000Ultra Fine
    OK10FK10-K206.0014.9092.002000Middle/Fine
    OK30MK308.0014.8091.502200Fine
    OK40FK4010.0014.4591.903400Middle/Fine
    OK50MK5012.0014.2590.003500Fine
    OG30MG108.0014.7091.002100Middle
    OG60MG2011.0014.4089.002400Middle
    OG70MG3015.0014.2086.702800Middle
    OG80MG4020.0013.6585.003000Middle
    OG90MG5025.0013.2084.203200Middle

    50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 9050mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90

    50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 9050mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90
