Brand Name : | OED or OEM |
Model Number : | Nozzles |
Certification : | ISO 9001: 2015 |
Price : | 110-150 USD/PC, special tools can be negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2000pcs per month |
Delivery Time : | Standard products in one week, special tools in 45 days |

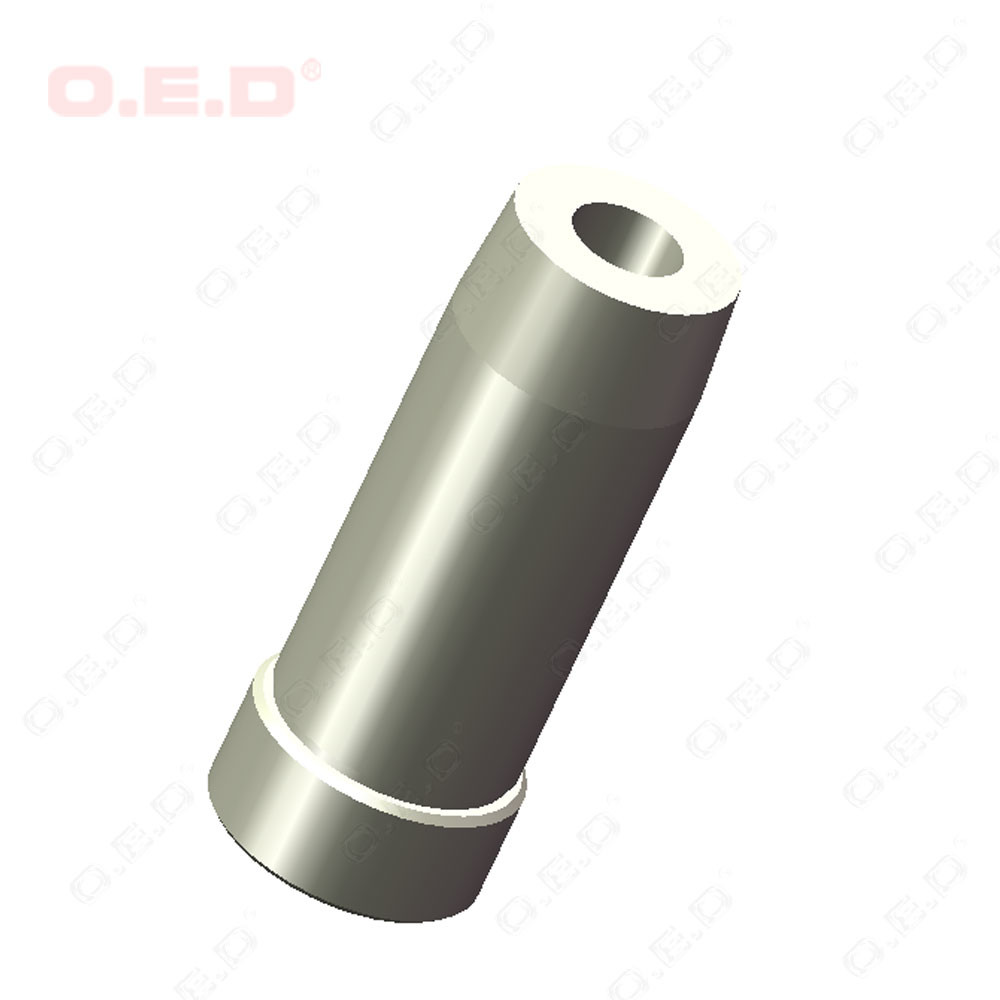

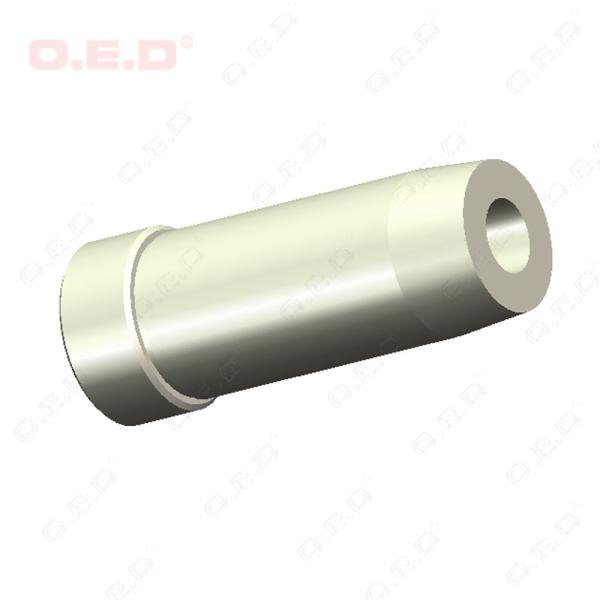

ON20 Corrosion Resistance Tungsten Carbide Spray Nozzles Nickel Tungsten Carbide Nozzles
With Nickel as the binder, the corrosion resistance performance is much better than Cobalt as the binder, so the service of the carbide nozzles can be improved.
General Dimensions:
General Information of K20 Grade
Remove sharp edges.
Features:
Carbide Grade ON20
Corrosion-resistant grades | Grade | Ni | Density | Hardness HRA | Hardness HV30 | T.R.S. | Grain size |
ON10 | 5.50 | 14.80 | 90.90 | 1480 | >1450 | Middle | |
ON20 | 6.00 | 14.80 | 90.80 | 1460 | >1600 | Middle | |
ON30 | 7.50 | 14.65 | 90.30 | 1410 | >1800 | Middle | |
ON40 | 9.00 | 14.55 | 89.20 | 1310 | >2150 | Middle | |
ON50 | 10.00 | 14.40 | 89.00 | 1300 | >2300 | Middle | |
ON60 | 11.00 | 14.20 | 88.50 | 1250 | >2450 | Middle | |
ON70 | 15.00 | 13.15 | 84.10 | 950 | >2650 | Middle |
![]() |
