Brand Name : | OED or OEM |
Model Number : | Customized |
Certification : | ISO 9001: 2008 |
Price : | Raw sintered between 38-68usd/kg, special tools can be negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2000kgs per month |
Delivery Time : | Standard products in one week, special tools in 45 days |

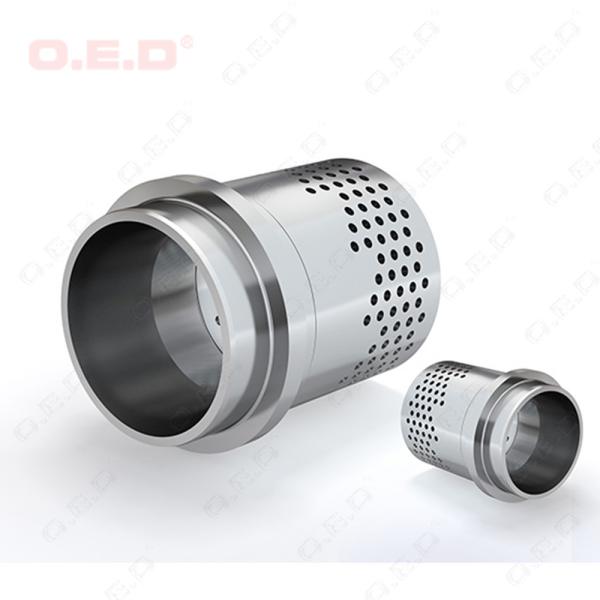

Carbide Cage For Oil Gas Parts Tungsten Carbide Wear Parts For Oil Field
Carbide has high hardness, high wear resistance and corrosion resistance, compared to silicon carbide wear resistance is higher, so widely used in oil fields, mines, exploration and other high temperature and high pressure environment,
Cobalt Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YG6 | 6 | 14.8 | 90 | 1520 |
YG6X | 6 | 14.9 | 91 | 1450 |
YG6A | 6 | 14.9 | 92 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88 | 1810 |
YG15 | 15 | 14 | 87 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
YG25 | 25 | 12.1 | 84 | 2550 |
Nickel Binder Grades
Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
![]() |
