    Textile Industry Tungsten Carbide Bushes

    Ask Lasest Price
    Brand Name : OED or OEM
    Model Number : Carbide bushing
    Certification : ISO 9001: 2008
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000kgs per month
    Delivery Time : Standard products in one week, special tools in 45 days
    • Product Details
    • Company Profile

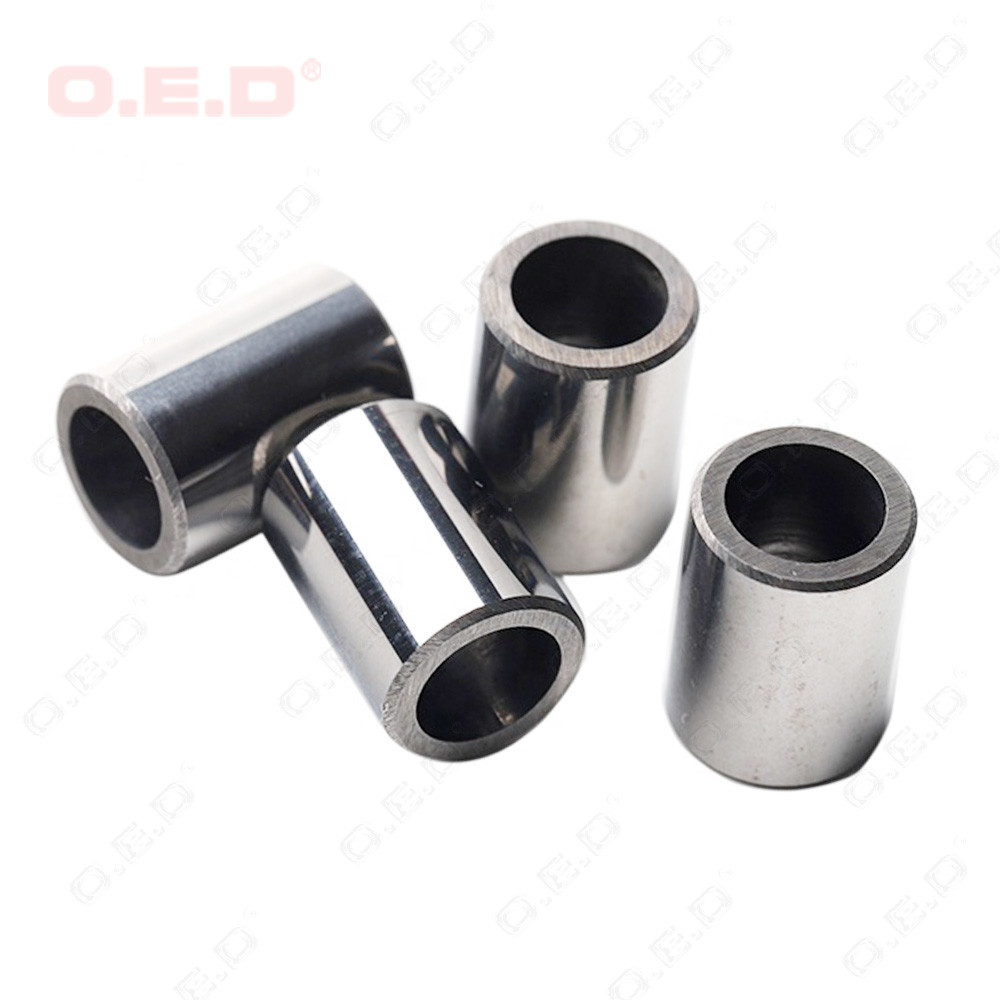

    Textile Industry Tungsten Carbide Bushes

    High Precision TC Wear Rings Tungsten Carbide Wear Bushers For Texitle Industry​


    Material G20(ZCC grade YG11)

    Main Dimensions:

    OD 13mm

    ID 8h6mm

    Height 5.5mm

    Polished Ra 0.2


    Hardness HRA 91.5

    TRS >3000 N/mm2

    Density 14.42 g/cm3


    High hardness with good wear resistance.

    Textile Industry Tungsten Carbide BushesTextile Industry Tungsten Carbide Bushes

    Our products range of customized wear parts:


    • Mechanical seal parts
    • Pump bush
    • Pump sleeve
    • API ball and seat
    • Choke stem and seat
    • TC flow cages
    • Carbide disc
    • Drill nozzles
    • Wear inserts
    • TC Inlet plate
    • Wear rings

    Recommended carbide grades for wear parts:

    Application
    Code
    GradeChemical CompositionPhysical and mechanical properties
    and mirco structure as stintered
    Application recommended
    CoTic/
    TacNbc
    WCDensityHardnessHardnessTRSCoercivityGrain Size
    g/cm3HV 30HRAN/mm2KA/mμm
    G05OG6X6 9414.85~15.05≥1500≥91.00≥170019.2~25.70.8For drilling soft or medium hard rock formation with a single-zxis compression strength less than 60 Mpa
    G10OG66 9414.85~15.05≥1350≥89.50≥180012.0~15.91.6
    G15OG8C8 9214.55~14.75≥1150≥87.50≥20007.6~9.62.5For drilling soft or medium hard rock formation with a single-zxis compression strength of60-120 Mpa
    G20OG11C12 8814.20~14.40≥1050≥86.50≥24006.0~8.02.0
    G30OG1515 8513.95~14.15≥1050≥86.50≥22208.0~10.81.6For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa
    G40OG2020 8013.45~13.65≥750≥83.50≥24807.0~8.91.0
    G50OG2525 7513~13.15≥65082.5≥350010~131.6For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa

    Why choose us for carbide wear parts:

    • Professional engineer team and skillful workers
    • 100% brand new material, various caribde grades for wear parts.
    • More than 25 years experience in producing wear parts.
    • Quality guarantee, no quality complaint over 25 years.
    • Cost effective and customized service is available.

    Textile Industry Tungsten Carbide Bushes


    Textile Industry Tungsten Carbide Bushes


    Textile Industry Tungsten Carbide Bushes


    Textile Industry Tungsten Carbide Bushes
