    G20 Tungsten Carbide Seal Rings

    Ask Lasest Price
    Brand Name : OED or OEM
    Model Number : Carbide wear part
    Certification : ISO 9001: 2008
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000kgs per month
    Delivery Time : Standard products in one week, special tools in 45 days
    • Product Details
    • Company Profile

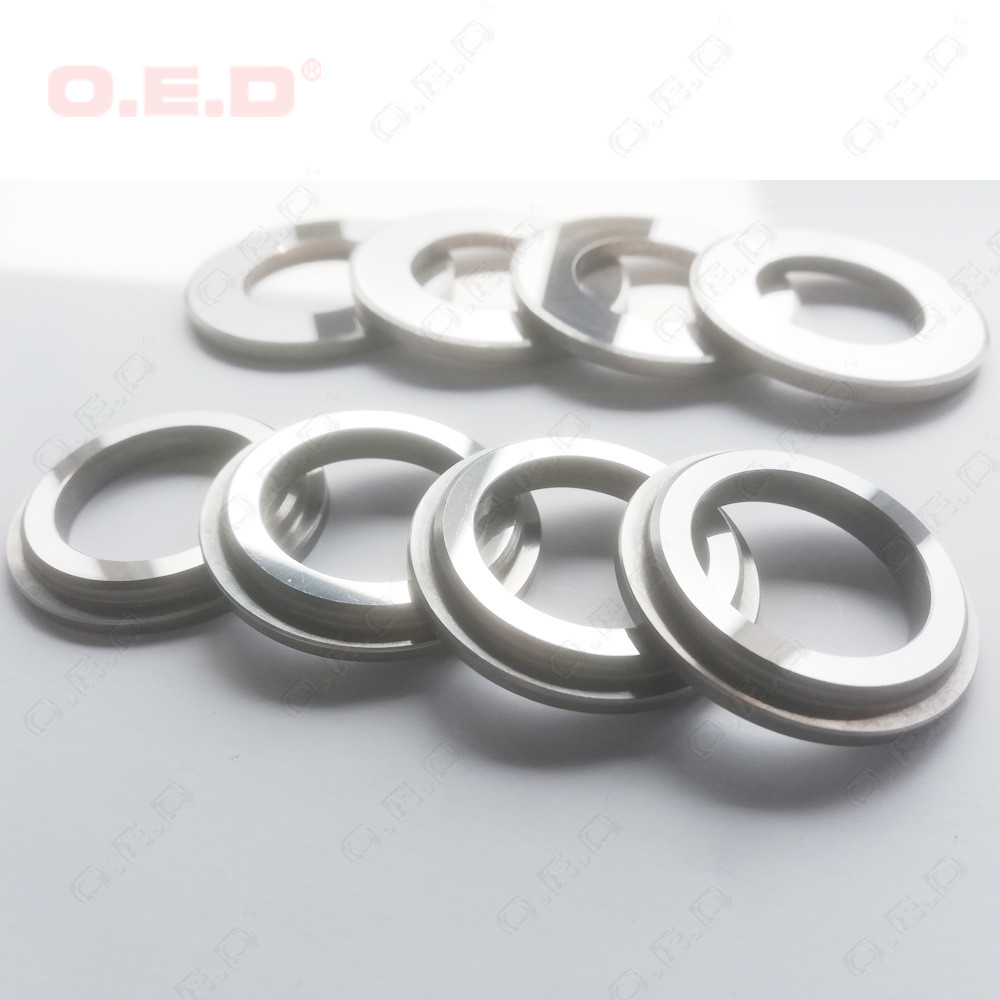

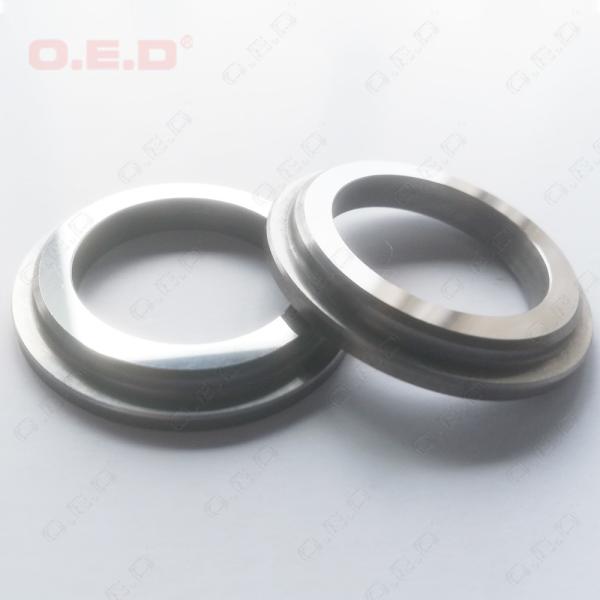

    G20 Tungsten Carbide Seal Rings

    Tungsten Carbide Seal Rings Machanical Wear Parts Precision Polished Carbide Sealing​


    Grade G20

    Outer Diameter 46mm

    Inner Diameter 36mm

    Thickness 5mm

    Roughness Ra 0.4

    Concentricity 0.02


    We can offer different carbide grades according to various applications. Part of our carbide grades are as following:


    Recommended carbide grades for wear parts:

    Application
    Code
    GradeChemical CompositionPhysical and mechanical properties
    and mirco structure as stintered
    Application recommended
    CoTic/
    TacNbc
    WCDensityHardnessHardnessTRSCoercivityGrain Size
    g/cm3HV 30HRAN/mm2KA/mμm
    G05OG6X6 9414.85~15.05≥1500≥91.00≥170019.2~25.70.8For drilling soft or medium hard rock formation with a single-zxis compression strength less than 60 Mpa
    G10OG66 9414.85~15.05≥1350≥89.50≥180012.0~15.91.6
    G15OG8C8 9214.55~14.75≥1150≥87.50≥20007.6~9.62.5For drilling soft or medium hard rock formation with a single-zxis compression strength of60-120 Mpa
    G20OG11C12 8814.20~14.40≥1050≥86.50≥24006.0~8.02.0
    G30OG1515 8513.95~14.15≥1050≥86.50≥22208.0~10.81.6For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa
    G40OG2020 8013.45~13.65≥750≥83.50≥24807.0~8.91.0
    G50OG2525 7513~13.15≥65082.5≥350010~131.6For drilling soft or medium hard rock formation with a single-zxis compression strength of 120-200 Mpa

    Compared with traditional silicon carbide, carbide has more stable chemical properties, such as good wear resistance, high thermal conductivity, low coefficient of friction, small coefficient of expansion, acid resistance, alkali resistance, self-lubrication, corrosion resistance, high thermal conductivity and small expansion coefficient, making it an ideal material for mechanical wear-resistant parts.


    G20 Tungsten Carbide Seal RingsG20 Tungsten Carbide Seal RingsG20 Tungsten Carbide Seal Rings


    Our products range of customized wear parts:


    • Mechanical seal parts
    • Pump bush
    • Pump sleeve
    • API ball and seat
    • Choke stem and seat
    • TC flow cages
    • Carbide disc
    • Drill nozzles
    • Wear inserts
    • TC Inlet plate
    • Wear rings

    Why choose us for carbide wear parts:

    • Professional engineer team and skillful workers
    • 100% brand new material, various caribde grades for wear parts.
    • More than 25 years experience in producing wear parts.
    • Quality guarantee, no quality complaint over 25 years.
    • Cost effective and customized service is available.
