K40uf End Mills Tungsten Carbide Rods , Solid Unground Carbide Rods

Product Categories

Hunan Golden Globe I&E O.E.D Co., Ltd.

Contact Now

K40uf End Mills Tungsten Carbide Rods , Solid Unground Carbide Rods

Ask Lasest Price
Brand Name :	OED or OEM
Model Number :	Carbide Rods
Certification :	ISO 9001: 2008
Price :	$38-$78/kg
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000kgs per month
Delivery Time :	Standard products in one week, special tools in 45 days

Add to Cart

Product Details
Company Profile

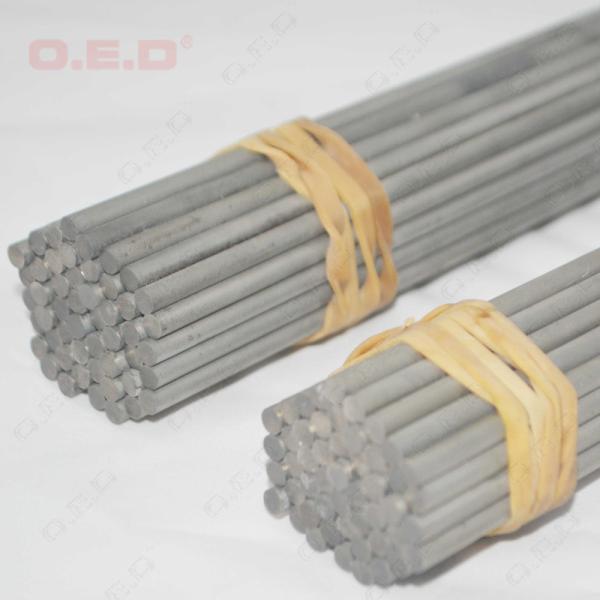

K40uf End Mills Tungsten Carbide Rods , Solid Unground Carbide Rods

Solid Unground Tungsten Carbide Rods K40uf End Mills Carbide Rods

Carbide solid rod is the most regular carbide rod, OED solid rod with stable quality, competitive prices can provide our customers with very good support.

Regular rods can be shipped within 3 days, fast delivery time can allow customers to save the funds of inventory.

Diameter mm		Length mm		Stock status •
Diameter mm		Length mm		OED10A	OED10.2	OED10D	OEDU12
D	Tolerance	Length	Tol.	Order by stock article
1.16	-0/+0.15	330	0/+5	1001-1.16UG	2001-1.16UG	3001-1.16UG	4001-1.16UG
1.65		330	0/+5	1001-1.65UG	2001-1.65UG	3001-1.65UG	4001-1.65UG
1.80		330	0/+5	1001-1.8UG	2001-1.8UG •	3001-1.8UG	4001-1.8UG
2.20	-0/+0.20	330	0/+5	1001-2.2UG	2001-2.2UG •	3001-2.2UG	4001-2.2UG
2.70		330	0/+5	1001-2.7UG	2001-2.7UG •	3001-2.7UG	4001-2.7UG
3.25		330	0/+5	1001-3.25UG	2001-3.25UG	3001-3.25UG	4001-3.25UG
3.70		330	0/+5	1001-3.7UG	2001-3.7UG •	3001-3.7UG •	4001-3.7UG
4.20		330	0/+5	1001-4.2UG	2001-4.2UG •	3001-4.2UG	4001-4.2UG
4.70		330	0/+5	1001-4.7UG	2001-4.7UG •	3001-4.7UG	4001-4.7UG
5.20	-0/+0.25	330	0/+5	1001-5.2UG	2001-5.2UG •	3001-5.2UG	4001-5.2UG
5.70		330	0/+5	1001-5.7UG	2001-5.7UG •	3001-5.7UG •	4001-5.7UG
6.20		330	0/+5	1001-6.2UG	2001-6.2UG •	3001-6.2UG	4001-6.2UG
6.70		330	0/+5	1001-6.7UG	2001-6.7UG •	3001-6.7UG	4001-6.7UG
7.20	-0/+0.35	330	0/+5	1001-7.2UG	2001-7.2UG •	3001-7.2UG	4001-7.2UG
7.70		330	0/+5	1001-7.7UG	2001-7.7UG •	3001-7.7UG	4001-7.7UG
8.20		330	0/+5	1001-8.2UG	2001-8.2UG •	3001-8.2UG •	4001-8.2UG
8.70		330	0/+5	1001-8.7UG	2001-8.7UG •	3001-8.7UG	4001-8.7UG
9.20		330	0/+5	1001-9.2UG	2001-9.2UG •	3001-9.2UG •	4001-9.2UG
9.70		330	0/+5	1001-9.7UG	2001-9.7UG •	3001-9.7UG	4001-9.7UG
10.20		330	0/+5	1001-10.2UG	2001-10.2UG	3001-10.2UG	4001-10.2UG
10.70		330	0/+5	1001-10.7UG	2001-10.7UG •	3001-10.7UG	4001-10.7UG
11.20		330	0/+5	1001-11.2UG	2001-11.2UG •	3001-11.2UG	4001-11.2UG
11.70		330	0/+5	1001-11.7UG	2001-11.7UG •	3001-11.7UG	4001-11.7UG
12.20		330	0/+5	1001-12.2UG	2001-12.2UG •	3001-12.2UG	4001-12.2UG
12.70		330	0/+5	1001-12.7UG	2001-12.7UG •	3001-12.7UG	4001-12.7UG
13.20		330	0/+5	1001-13.2UG	2001-13.2UG •	3001-13.2UG	4001-13.2UG
13.70		330	0/+5	1001-13.7UG	2001-13.7UG •	3001-13.7UG	4001-13.7UG
14.20		330	0/+5	1001-14.2UG	2001-14.2UG •	3001-14.2UG	4001-14.2UG
14.70		330	0/+5	1001-14.7UG	2001-14.7UG •	3001-14.7UG	4001-14.7UG
15.20		330	0/+5	1001-15.2UG	2001-15.2UG •	3001-15.2UG	4001-15.2UG
15.70		330	0/+5	1001-15.7UG	2001-15.7UG •	3001-15.7UG	4001-15.7UG
16.20	-0/+0.45	330	0/+5	1001-16.2UG	2001-16.2UG •	3001-16.2UG	4001-16.2UG
17.20		330	0/+5	1001-17.2UG	2001-17.2UG •	3001-17.2UG	4001-17.2UG
18.20		330	0/+5	1001-18.2UG	2001-18.2UG •	3001-18.2UG	4001-18.2UG
19.20		330	0/+5	1001-19.2UG	2001-19.2UG •	3001-19.2UG	4001-19.2UG
20.20		330	0/+5	1001-20.2UG	2001-20.2UG •	3001-20.2UG	4001-20.2UG
21.20	-0/+0.55	330	0/+5	1001-21.2UG	2001-21.2UG •	3001-21.2UG	4001-21.2UG
22.20		330	0/+5	1001-22.2UG	2001-22.2UG •	3001-22.2UG	4001-22.2UG
23.20		330	0/+5	1001-23.2UG	2001-23.2UG •	3001-23.2UG	4001-23.2UG
24.2		330	0/+5	1001-24.2UG	2001-24.2UG •	3001-24.2UG	4001-24.2UG
25.2	-0/+0.65	330	0/+5	1001-25.2UG	2001-25.2UG •	3001-25.2UG	4001-25.2UG
26.2		330	0/+5	1001-26.2UG	2001-26.2UG •	3001-26.2UG	4001-26.2UG
28.2		330	0/+5	1001-28.2UG	2001-28.2UG •	3001-28.2UG	4001-28.2UG
30.2		330	0/+5	1001-30.2UG	2001-30.2UG •	3001-30.2UG	4001-30.2UG
32.2		330	0/+5	1001-32.2UG	2001-32.2UG •	3001-32.2UG	4001-32.2UG

1.Length=330mm tolerance 0/+5.0

2. Customized size is available.

K40uf End Mills Tungsten Carbide Rods , Solid Unground Carbide Rods

OED Carbide grades for Rods

		OEDF06	OEDU06	OEDU08E	OED10A	OED10.2	OED10D	OEDU12
ISO range		K05-K10	K05-K10	K05-K10	K20-K30	K20-K30	K30-K40	K30-K40
WC+other	%	93.7	93	92	91	89.4	86.5	86.5
Co	%	6	6	8	8	10	12	12
WC grain size	μm	0.6	0.4	0.4	0.8	0.6	0.6	0.4
density	g/㎝³	14.9	14.75	14.62	14.65	14.42	14.15	14.05
hardness	Hv30	1850	1890	1850	1700	1620	1700	1750
HRA		93.5	93.8	93.5	92.5	92.2	92.5	92.8
transverse rupture strength	N/mm²	3800	3000	4000	3000	4200	4000	4200
Metallograph

Grade recommendation.

Non-coated Grade	Application
6% Co	Reamer, for machining grey cast iron nonferrous metal, hardening steel, chilled iron, with high wear resistance.
8% Co	Drills and taps, for machining grey cast iron, nonferrous metal, with good wear resistance.
10% Co	It's widely used for milling tools, good performance of wearability bending strength, and toughness.
12% Co	High-speed milling tools, for machining steel and high silicon-aluminum alloy, with perfect wear resistance, bending strength, and toughness.
The other grades are available. Please let us know the usage and workpiece, then we can recommend the most suitable grade for you.

Our advantages:

CIP forming.

CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

Cryogenic process

The internal stress can be removed through the cryogenic process to improve the microstructure.

Vibration process

The internal stress can be removed through the vibration process to improve the overall performance.

Heat treatment

The service can be improved through the heat treatment process.

K40uf End Mills Tungsten Carbide Rods , Solid Unground Carbide Rods

CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

K40uf End Mills Tungsten Carbide Rods , Solid Unground Carbide Rods

Why choose us for carbide wear parts:

Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.
The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.
Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.
Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.
Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.
Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
