HRA 96 Tungsten Carbide Waterjet Cutting Nozzles Standard Wear
Nozzles

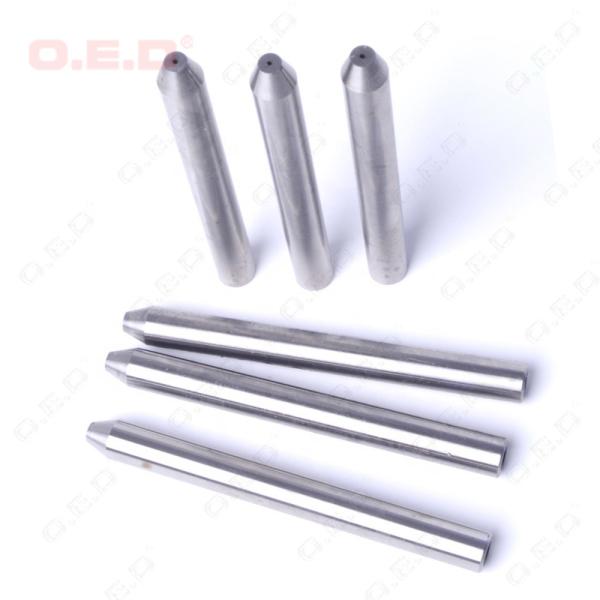

The standard size of carbide waterjet cutting nozzles:
| Type | Ф D | Ф d | d1 | d2 | α° | β° | L |
| 47467 | 6.00 | 0.76 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 45786 | 6.00 | 0.80 | 3.5 | 3.8 | 30 | 28 | 70 |
| 45486 | 6.00 | 1.02 | 3.5 | 3.8 | 30 | 28 | 70 |
| 47467 | 6.00 | 1.02 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 41141 | 6.35 | 0.50 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 41141 | 6.35 | 0.60 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 44588 | 6.35 | 0.76 | 3.5 | 3.8 | 30 | 28 | 50.8 |
| 41141 | 6.35 | 0.76 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 44588 | 6.35 | 1.02 | 3.5 | 3.8 | 30 | 28 | 50.8 |
| 41141 | 6.35 | 1.02 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 41141 | 6.35 | 1.14 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 41141 | 6.35 | 1.20 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 41141 | 6.35 | 1.27 | 3.5 | 3.8 | 30 | 28 | 76.2 |
| 48096 | 6.69 | 0.76 | 3.5 | 4 | 30 | 28 | 76.2 |
| 48096 | 6.69 | 1.02 | 3.5 | 4 | 30 | 28 | 76.2 |
| 48112 | 6.70 | 0.70 | 3.5 | 4 | 30 | 28 | 70 |
| 48543 | 6.70 | 1.00 | 3.5 | 4 | 30 | 28 | 70 |
| 43025 | 7.14 | 0.50 | 3.5 | 4.2 | 30 | 28 | 76.2 |
| 43025 | 7.14 | 0.76 | 3.5 | 4.2 | 30 | 28 | 76.2 |
| 48167 | 7.14 | 0.76 | 3.5 | 4.2 | 30 | 28 | 101.6 |
| 43025 | 7.14 | 1.02 | 3.5 | 4.2 | 30 | 28 | 76.2 |
| 48167 | 7.14 | 1.02 | 3.5 | 4.2 | 30 | 28 | 101.6 |
| 43025 | 7.14 | 1.27 | 3.5 | 4.2 | 30 | 28 | 76.2 |
| 45554 | 7.62 | 1.02 | 3.5 | 4.5 | 30 | 28 | 76.2 |
| 45554 | 7.62 | 1.27 | 3.5 | 4.5 | 30 | 28 | 76.2 |
| 45133 | 7.97 | 1.07 | 3.5 | 4.8 | 30 | 28 | 101.6 |
| 45133 | 7.97 | 0.50 | 3.5 | 4.8 | 30 | 28 | 101.6 |
| 45133 | 7.97 | 0.76 | 3.5 | 4.8 | 30 | 28 | 101.6 |
| 42014 | 9.43 | 0.50 | 3.5 | 5 | 30 | 28 | 76.2 |
| 42014 | 9.43 | 0.76 | 3.5 | 5 | 30 | 28 | 76.2 |
| 42014 | 9.43 | 1.02 | 3.5 | 5 | 30 | 28 | 76.2 |
OED Water jet cutting nozzles
Our abrasive water jet nozzles are widely used in various
industries, such as automobiles, decoration, buildings, and stone.
OED TOP abrasive water jet nozzle is made from special materials,
so it has greater performance than traditional tungsten carbide
nozzles. Based on the newest technology, OED water jet nozzles can
be more competitive than other nozzles.
OED nozzles as follows:
OED Tungsten carbide nozzles
Tungsten carbide nozzle is the most popular nozzle and is widely
used in many industries.
OED TIC Nozzles
Without cobalt as a binder, the hardness and service life will be
improved.
OED TOP nozzles
By mixing unique material, OED TOP nozzles can provide consistent,
accurate cutting.
By using material without cobalt and maintaining extra-fine grain
size, hardness can be up to HV10 3000 or even higher. As a result,
the performance of nozzles will be improved remarkably.
Why OED abrasive water jet nozzles
- Wear-resistant
- Consistent

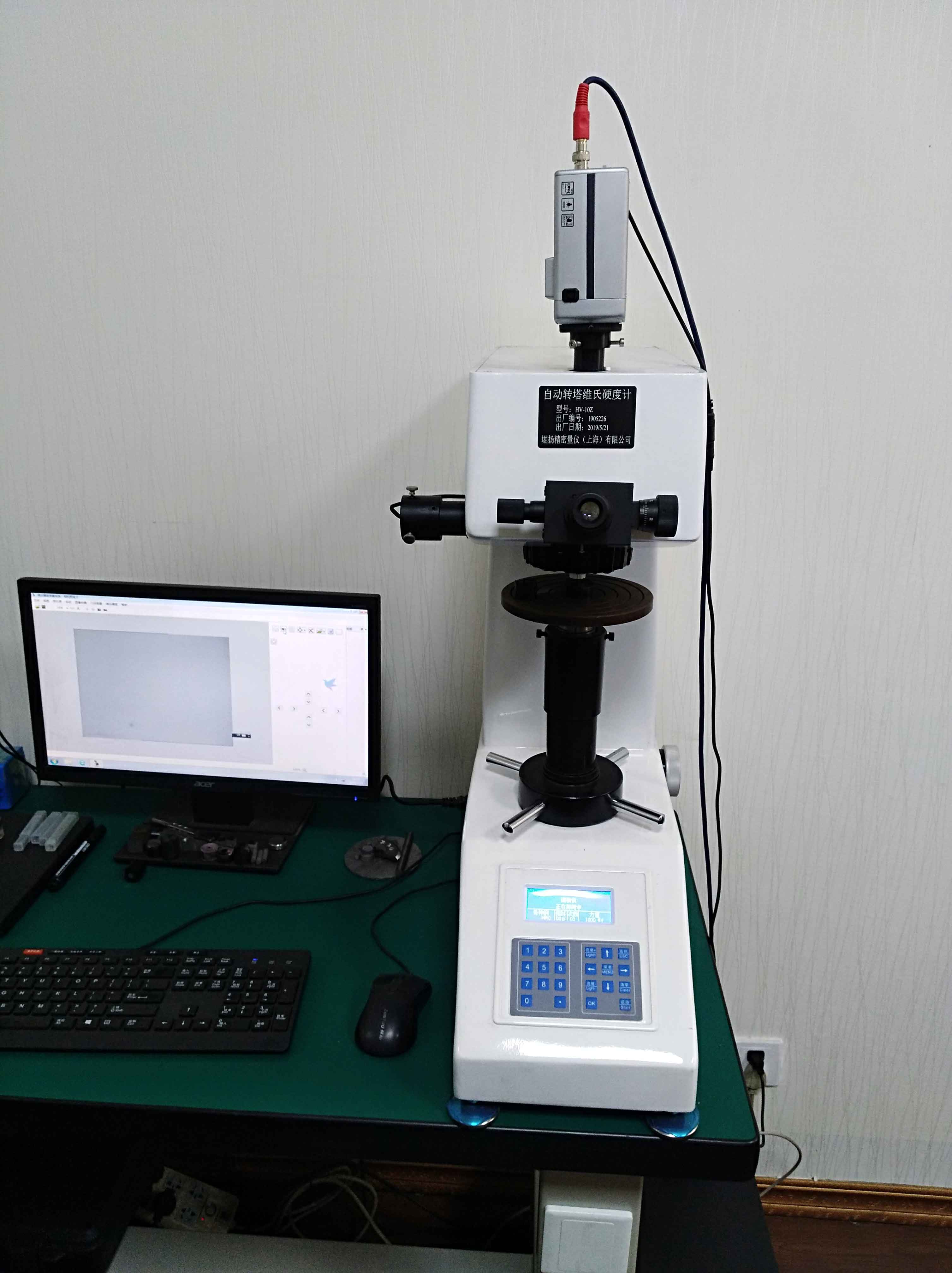

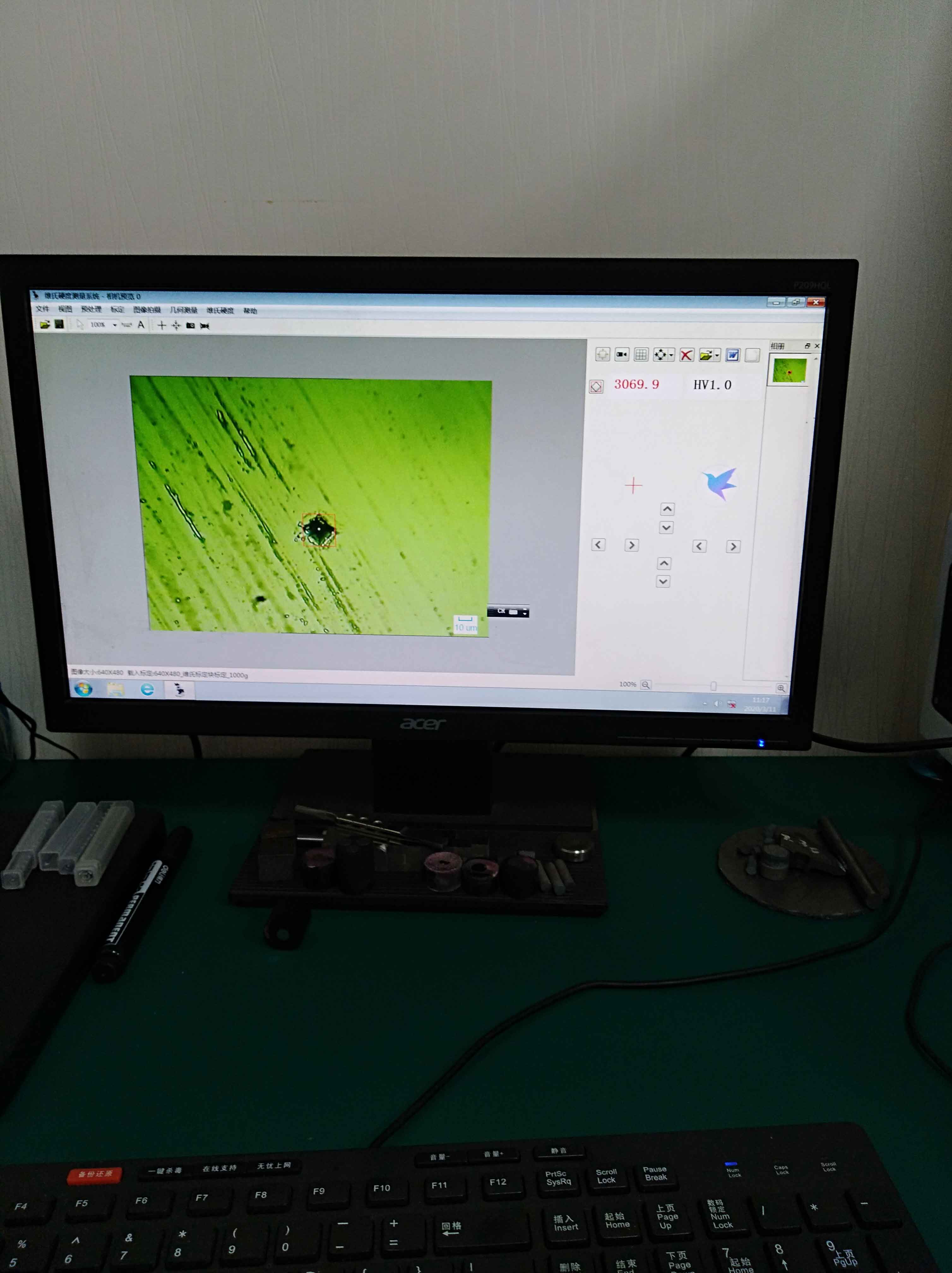

- High hardness above HV10 3000
- Service life can be extended by at least 40%
- Up to 120 Hours of precision cutting
- Faster cutting speeds
- Perfect cost performance

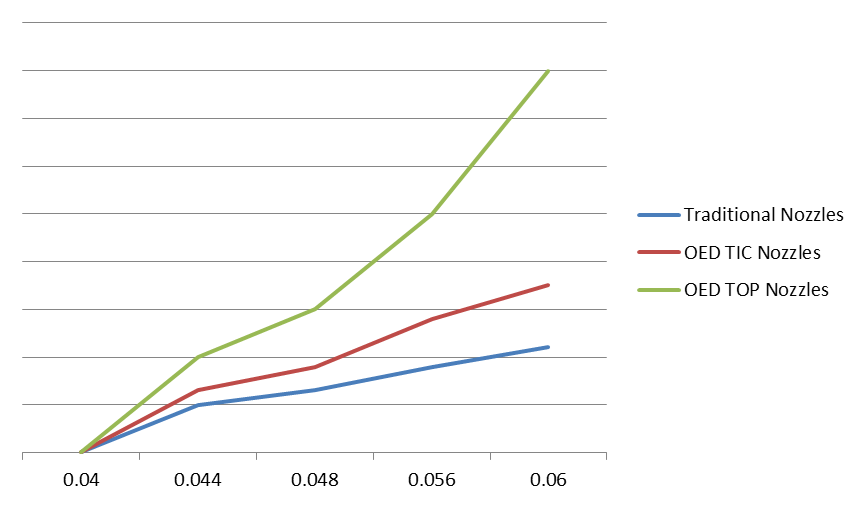

As the figure above shows, the service life of OED TOP Nozzles is
extended much longer than traditional nozzles.
Tungsten carbide wear-resistance nozzles.
Carbide is widely used in the production of various types of
nozzles with high hardness and wear resistance. Standard carbide
nozzles are as follows:
Solid Tungsten Oil Nozzle
Tungsten Carbide PDC Spray Nozzle
Tungsten carbide venturi nozzle
Sandblasting Nozzle
Slurry nozzles
Mud nozzles
Tungsten carbide screw thread nozzle
Water Spray Nozzle
Rotating Nozzle
Waterjet cutting nozzles
Special cutting nozzles
Wet blasting nozzle
Recommended carbide grades of carbide nozzles:
| Grade | | Co | Density | Hardness (HRA) | T.R.S. |
| Grain Size | (Wt %) | (g/cm3) | hv30 | (≥N/mm²) |
| YG11C | Coarse | 11 | 14.39 | ＞1170 | 2800 |
| YG15C | Coarse | 15 | 14 | 1100 | 2800 |
| YG15X | Fine | 15 | 14.2 | 1200 | 3000 |
| YG20 | Medium | 20 | 13.5 | 900 | 2800 |
| YG6X | Fine | 6 | 14.9 | 1600 | 2800 |
| YG8 | Medium | 8 | 14.7 | 1500 | 2500 |
| YG9 | Medium | 9 | 14.6 | 1300 | 2800 |
| YG10X | Fine | 10 | 14.5 | 1200 | 3800 |

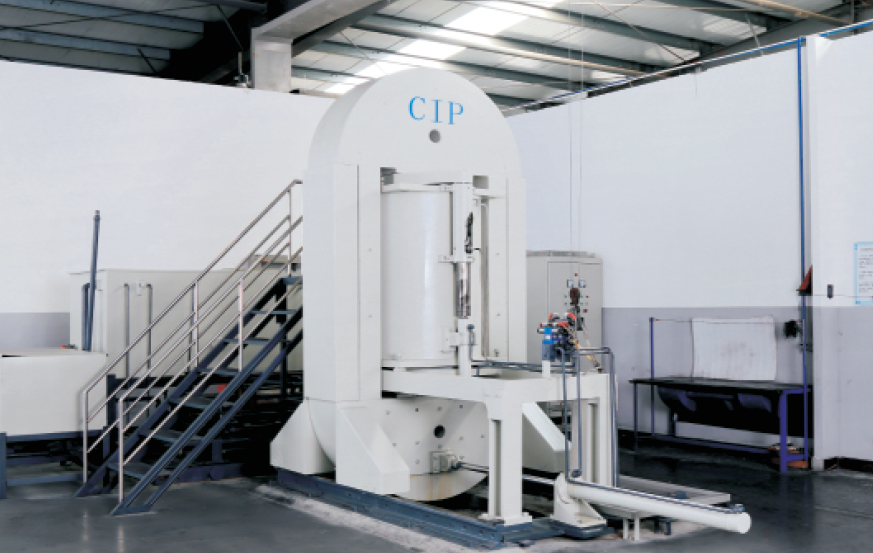

CIP forming.
CIP Forming can eliminate the internal defects of raw sintered
carbide blanks in particular. It can provide uniform density
suppression products for the thick carbide strips/plate and special
shape carbide products.
Our advantages:
CIP Forming can eliminate the internal defects of raw sintered
carbide blanks in particular. It can provide uniform density
suppression products for the thick carbide strips/plate and special
shape carbide products.
The internal stress can be removed through the cryogenic process to
improve the microstructure.
The internal stress can be removed through the vibration process to
improve the overall performance.
The service can be improved through the heat treatment process.
Why choose us for carbide wear parts:

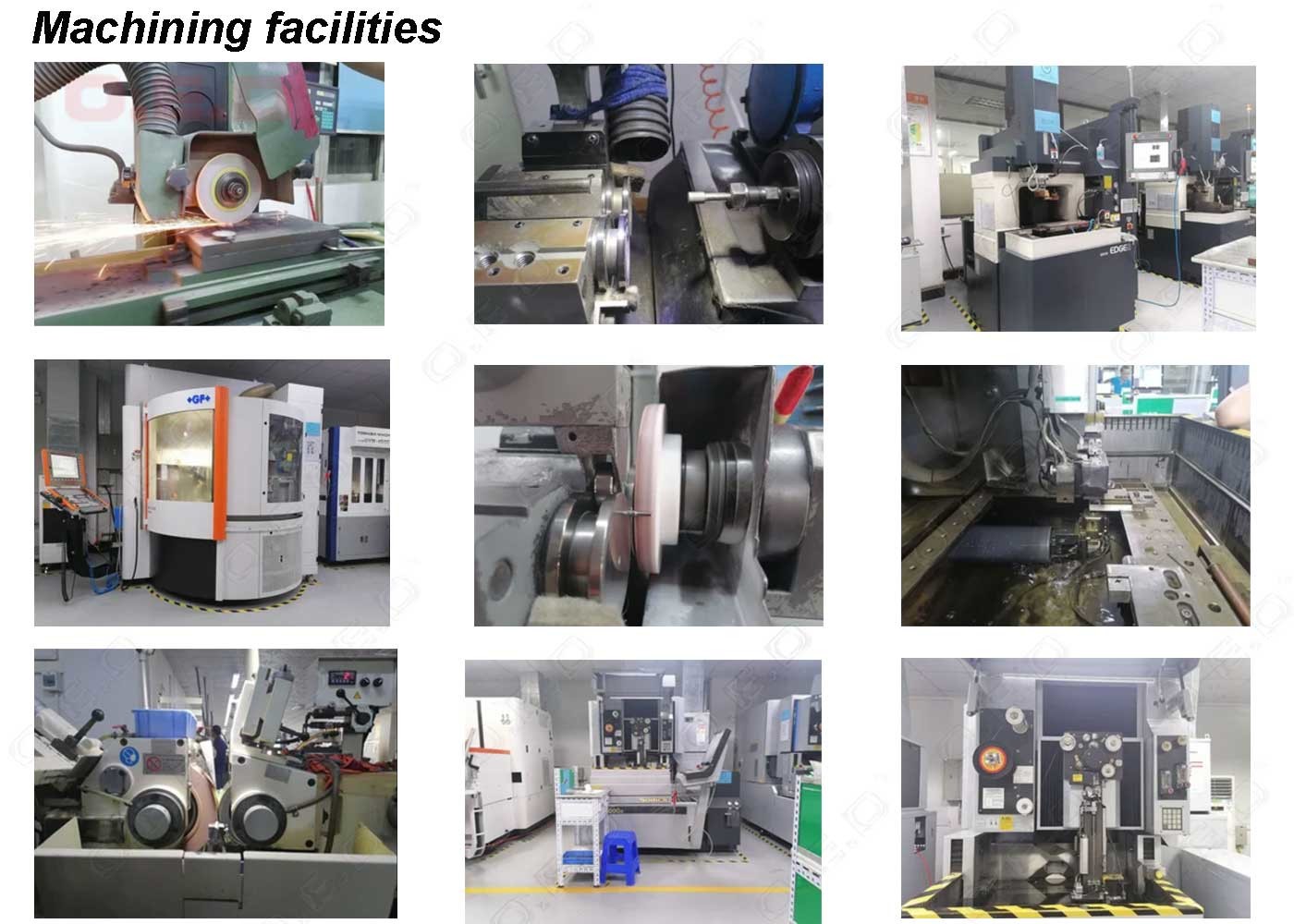

- Professional production equipment. From spray drying towers, extrusion molding, mold molding,
injection molding, CIP, HIP sintering furnaces, flat grinders,
heartless grinders, round grinders, EMD cutting, polishing
machines, etc. OED can provide reliable quality assurance for your
products.

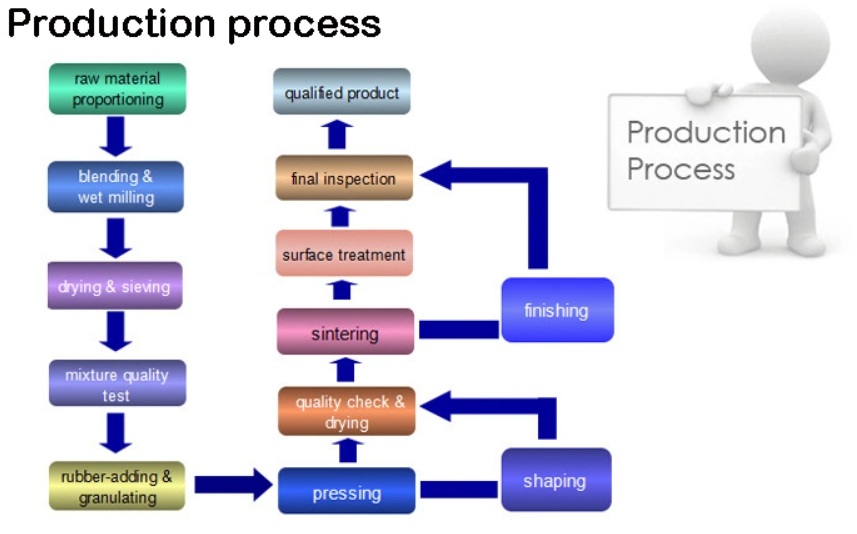

- The strict control of the production processing. From raw materials, sintering, processing, we will strictly test
each process, non-conforming products will not enter the subsequent
production.
- Proficient technical team. Senior carbide raw materials engineers: To analyze whether the
product meets your application requirements. Senior production
managers: To study the most suitable for your product processing
methods. Skilled technical inspectors: To test whether the finished
product meets your drawing requirements.
- Reliable service. Not only can we provide pre-sales technical services, but our
engineers can also come up with product improvements to provide the
most reasonable solution for your product.
- Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team
can help customers to find the solution with mold fees. In this
way, our customers can try the samples at a minimized cost.
- Fast delivery. Standard products could be delivered in one week, and the special
carbide tools could be finished in 25-45 days after confirming the
drawings or 3D model.
