HRA 92 G30 Tungsten Carbide Plates , 105mm carbide EDM Blocks

Ask Lasest Price
Brand Name :	OED or OEM
Model Number :	Carbide blocks
Certification :	ISO 9001: 2008
Price :	$7-$35
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000pcs per month
Delivery Time :	Standard products in one week, special tools in 45 days

Add to Cart

Product Details
Company Profile

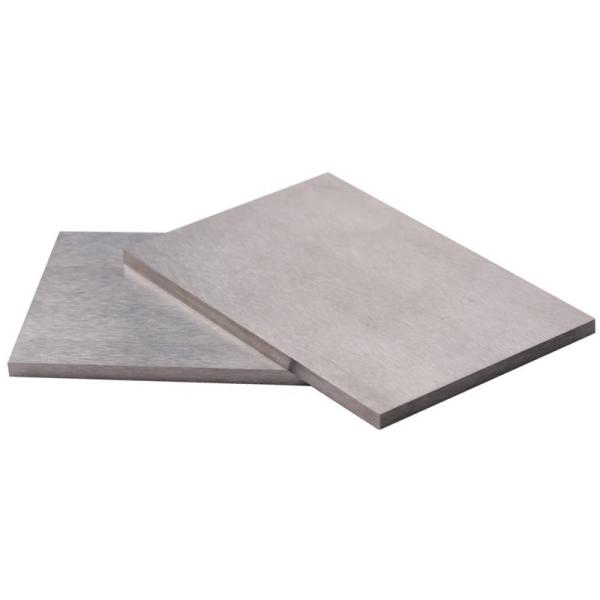

HRA 92 G30 Tungsten Carbide Plates , 105mm carbide EDM Blocks

Special Cutting Nozzles Cemented Carbide Nozzle Corrosion Resistance Cutting Nozzles

105mm carbide EDM Blocks

Tolerance for length and width 0/+1.0

Thickness 0/+0.2

Standard sizes of 105mm carbide blocks:

Type	Dimensions(mm) Tol.(mm)			Grade
Type	L (+0.6-+2)	W (+0.6-+2)	T +0.2/+0.7	EDM30	EDM40	EDM50
EDM10506	105	105	6	☆	☆	o
EDM10507	105	105	7	☆	☆	☆
EDM10508	105	105	8	☆	☆	O
EDM10509	105	105	9	☆	☆	☆
EDM10510	105	105	10	☆	☆	o
EDM10512	105	105	12	☆	☆	o
EDM10515	105	105	15	☆	☆	o
EDM10516	105	105	16	☆	☆	☆
EDM10518	105	105	18	☆	☆	o
EDM10520	105	105	20	☆	☆	o
EDM10522	105	105	22	☆	☆	o
EDM10523	105	105	23	☆	☆	☆
EDM10524	105	105	24	☆	☆	☆
EDM10525	105	105	25	☆	☆	o
EDM10527	105	105	27	☆	☆	☆
EDM10528	105	105	28	☆	☆	☆
EDM10529	105	105	29	☆	☆	☆
EDM10530	105	105	30	☆	☆	☆
EDM10535	105	105	35	☆	☆	☆
EDM10540	105	105	40	☆	☆	☆
EDM10545	105	105	45	☆	☆	☆
EDM10550	105	105	50	☆	☆	o
EDM1O552	105	105	52	☆	☆	o
EDM10555	105	105	55	☆	☆	o
EDM10560	105	105	60	☆	☆	o
EDM 10562	105	105	62	☆	☆	o
EDM 10565	105	105	65	☆	☆	o
EDM10570	105	105	70	☆	☆	☆

HRA 92 G30 Tungsten Carbide Plates , 105mm carbide EDM Blocks

OED Carbide EDM Block:

Suitable for electronics, motor rotors, IC packages, lead frames, terminals, connectors, motor chip stamping, and other stamping fields.

Advanced formulation manufacturing process,
Wire cutting
Anti-corrosion properties of discharge processing
High-speed stamping resistance
High wear resistance

Recommended grades of carbide blocks:

Grade	Binder (Co%)	Density g/cm3	Hardness (HRA)	T.R.S.	Compress strength	Grain Size
EDM10S	6	14.8	90.5	2900	5100	0.8-1.0
EDM15S	13	14.15	90	3000	5100	0.8- 1.5
EDM20S	13.5	14	90	3600	5200	0.8~1.5
EDM25S	13	14.15	89.5	3800	5000	1.0- 2.0
EDM30	12	14.25	90	3500	4900	0.8- 1.8
EDM40	12.5	14.1	89.5	3600	4600	1.0- 2.0
EDM50	14	14	88.5	3700	4500	1.5- 3.0
EDM60	15	13.9	87.5	3500	4200	2.0- 4.0

HRA 92 G30 Tungsten Carbide Plates , 105mm carbide EDM Blocks

CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

HRA 92 G30 Tungsten Carbide Plates , 105mm carbide EDM Blocks

Our advantages:

CIP forming.

CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

Cryogenic process

The internal stress can be removed through the cryogenic process to improve the microstructure.

Vibration process

The internal stress can be removed through the vibration process to improve the overall performance.

Heat treatment

The service can be improved through the heat treatment process.

Why choose us for carbide wear parts:

Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.
The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.
Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.
Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.
Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.
Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
