Brand Name : | OED/OEM is available |
Model Number : | Carbide block |
Certification : | ISO9001:2015 |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2000kgs per month |
Delivery Time : | Standard products in one week, special tools in 45 days |

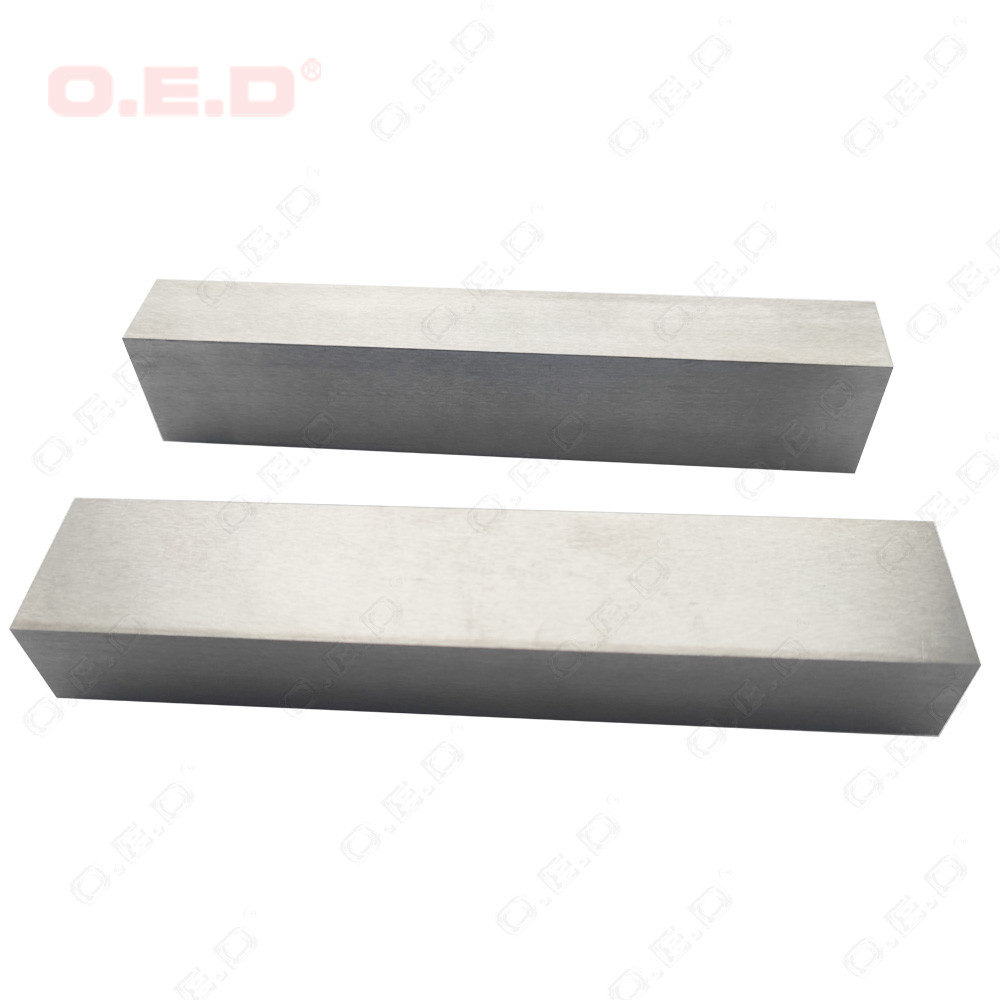

Metering Gauges Tungsten Carbide Block YG11 Ground T.C. Plates
Tungsten carbide block is a common material used in the manufacture of mold metering gauges and other products and is widely used in various molds and precision machinery with its high precision and wear resistance.
Ground carbide block for making molds
Length 185mm
Width 20mm
Thickness 25.4mm
Tolerance for all dimensions +0.02mm
Grade recommended:
Wear part grades | Grade | ISO Grade | Co | Density | Hardness | T.R.S. | Grain size |
OK05UF | K05 | 6.00 | 14.90 | 93.20 | 3000 | Ultra Fine | |
OK10F | K10-K20 | 6.00 | 14.90 | 92.00 | 2000 | Middle/Fine | |
OK30M | K30 | 8.00 | 14.80 | 91.50 | 2200 | Fine | |
OK40F | K40 | 10.00 | 14.45 | 91.90 | 3400 | Middle/Fine | |
OK50M | K50 | 12.00 | 14.25 | 90.00 | 3500 | Fine | |
OG30M | G10 | 8.00 | 14.70 | 91.00 | 2100 | Middle | |
OG60M | G20 | 11.00 | 14.40 | 89.00 | 2400 | Middle | |
OG70M | G30 | 15.00 | 14.20 | 86.70 | 2800 | Middle | |
OG80M | G40 | 20.00 | 13.65 | 85.00 | 3000 | Middle | |
OG90M | G50 | 25.00 | 13.20 | 84.20 | 3200 | Middle |
![]() |
