Brand Name : | OED or OEM |
Model Number : | Position pin |
Certification : | ISO 9001: 2015 |
Price : | 5-10USD/PC, special tools can be negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 2000pcs per month |
Delivery Time : | Standard products in one week, special tools in 45 days |

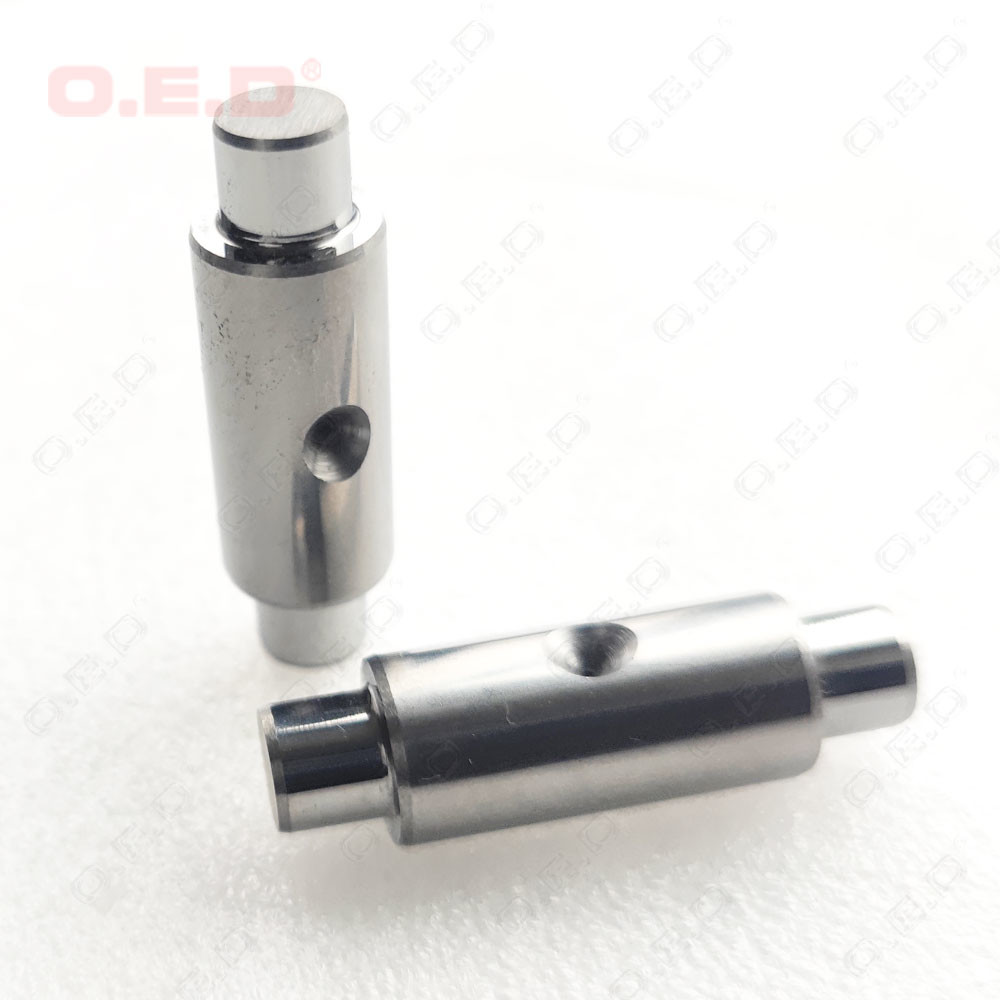

Non-Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
With Nickel as the binder, the tungsten carbide could be more
corrosion-resistance and get non-magnetic performance. This
position pin is made of 9% Nickel as the binder, it has high
transverse rupture strength and also high wear-resistance
performance.
General Dimensions:
Outer diameter 8mm/6mm
Length 40mm
Perpendicularity 0.05mm
Circularity 0.05mm
Surface roughness Ra 0.4, polished
Remove all sharp edges.
Carbide Grade ON40
Corrosion-resistant grades | Grade | Ni | Density | Hardness HRA | Hardness HV30 | T.R.S. | Grain size |
ON10 | 5.50 | 14.80 | 90.90 | 1480 | >1450 | Middle | |
ON20 | 6.00 | 14.80 | 90.80 | 1460 | >1600 | Middle | |
ON30 | 7.50 | 14.65 | 90.30 | 1410 | >1800 | Middle | |
ON40 | 9.00 | 14.55 | 89.20 | 1310 | >2150 | Middle | |
ON50 | 10.00 | 14.40 | 89.00 | 1300 | >2300 | Middle | |
ON60 | 11.00 | 14.20 | 88.50 | 1250 | >2450 | Middle | |
ON70 | 15.00 | 13.15 | 84.10 | 950 | >2650 | Middle |
we specialized in producing Punches, Ejector Pins and sleeves, Die
Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages,
Springs,Block Sets of many different standards
![]() |
